- Class: ENiCrMo-14
- AWS : A5.11
- Conforms to Certification : AWS A5.11 | ASME SFA 5.11
- Specifications:
- AWS A5.11 ENiCrMo-14 (UNS W86686)
- ASME II C SFA-5.11, ENiCrMo-14 (UNS W86026)
- ASME IX, F-No.43
- (EN) ISO 14172 - ENi6686 (NiCr21Mo16W4)
- Weld Process : Shielded Metal Arc Weld Process (SMAW)
- Dimensions : 2.0mm, 2.4mm, 2.5mm, 3.2mm, 4.0mm, 5.0mm

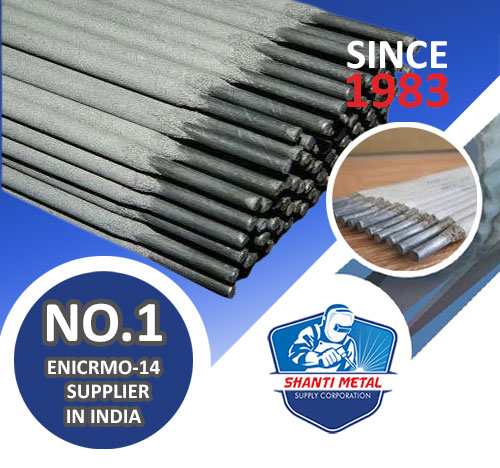

AWS A5.11 ENiCrMo-14 Tig Rod, ENiCrMo-14 Welding Electrode, Inconel Alloy 686 Welding MIG & TIG Filler Metal Supplier in India.
ENiCrMo-14 is a nickel-chromium-molybdenum alloy electrode classified under the AWS A5.11 standard, specifically developed for welding and joining high-performance alloys. It offers better corrosion resistance, high-temperature strength and ductility hence is the best option for the most demanding conditions. Shanti Metal is a well-known name in the metal industry that offers high-quality welding electrodes, and alloys customized for different industrial purposes. Whether used in chemical processing plants, marine industries, or extreme heat conditions, ENiCrMo-14 ensures reliable and durable welds, maintaining structural integrity even in the harshest conditions.
Classification & Composition
ENiCrMo-14 is made with a special combination of elements to increase its corrosion-resistant and mechanical properties:
Nickel (Ni): The base metal, offers excellent resistance to acids, salts, and hostile environments.
Chromium (Cr) : Improves oxidation resistance, especially under high temperatures.
Molybdenum (Mo): Adds strength and fights pitting and crevice corrosion, especially under chloride-rich environments.
Iron (Fe): Strengthens the structure without losing corrosion resistance.
This specilized composition allows ENiCrMo-14 to have excellent performance under severe conditions, being both durable, and efficient in most industrial uses.
Key Features
Excellent corrosion resistance in harsh environments
High-temperature strength for extreme heat applications
Superior weldability and structural integrity
Resistance to oxidation and chemical attacks
This feature makes it versatile across multiple industries
Applications
ENiCrMo-14 finds extensive applications in:
Chemical processing plants for welding reactors, pipelines, and tanks.
Marine and offshore industries to fight saltwater corrosion.
Aerospace and power plant for high temperature resistance.
Petrochemical and oil refineries for processing hostile chemicals.
We are committed to providing premium welding solutions to meet industry demands. Contact us today to learn more about ENiCrMo-14 and our range of high-quality alloys.
Inconel 686CPT Filler Rod & Wire in TIG /MIG, ENiCrMo-14 TIG Welding Filler Wire Stockist in Mumbai
For more info on available sizes, please Call us.
AWS ENiCrMo-14 Chemical Composition Requirements
| Element | Composition (%) |
| C | 0.02 max |
| Mn | 1.0 max |
| Fe | 5.0 max |
| P | 0.02 max |
| Cu | 0.50 max |
| Ni | Remainder |
| Ti | 0.25 max |
| Cr | 19.0 – 23.0 |
| S | 0.02 max |
| Si | 0.25 max |
| Mo | 15.0 – 17.0 |
| W | 3.0 – 4.4 |
| Other | 0.50 max |
Deposited Chemical Composition % (Typical)
| Element | Composition (%) |
| C | 0.005 |
| Mn | 0.17 |
| Fe | 0.69 |
| P | 0.003 |
| S | 0.001 |
| Si | 0.03 |
| Cu | 0.01 |
| Ni | 57.69 |
| Ti | 0.01 |
| Cr | 20.96 |
| Mo | 16.33 |
| W | 3.91 |
| TOE | <0.50 |
ENiCrMo-14 Mechanical Properties
| Condition & Size | Tensile Strength | Yield Strength (0.2% Offset) |
Elongation | Reduction of Area | Hardness |
| MPa, min | MPa, min | %, min | %, min | Rockwell, max | |
| All | 690 | ... | 30 | ... | ... |
ENiCrMo-14 Physical Properties
| Density | g/cm3 | 8.73 | |
| lb/in.3 | 0.315 | ||
| Melting Range | °F | 2440 - 2516 | |
| °C | 1338 - 1380 | ||
Deposited Charpy-V-Notch Impact Properties %
Not Applicable
Diameter of ENiCrMo-14 Inconel Tig Wire
| Diameter | mm in | 2.4 3/32 |
3.2 1/8 |
4.0 5/32 |
4.8 3/16 |
| Length | mm in | 229 9 |
356 14 |
356 14 |
356 14 |
| Current | A | 40-65 | 65-95 |
95-125 |
125-165 |
Recommended Weld Parameters
| Diameter of Wire | Voltage (V) | Flat | Vertical and Overhead |
| 3/32 inches (2.4mm) | 20 – 23 | 70 – 80 | 65 – 80 |
| 1/8 inches (3.2mm) | 21 – 24 | 80 – 110 | 75 – 95 |
| 5/32 inches (4.0mm) | 22 – 25 | 120 – 160 | Not recommended |
| 3/16 inches (4.8mm) | 23 – 25 | 170 – 190 | Not recommended |
